Назва: | Investigation of the radius of bending for flexible screw sectional conveyer |
Інші назви: | Дослідження радіуса згину гнучкого гвинтового конвеєра з секційними елементами |
Автори: | Gevko, І.B. Rogatinska, L.R. Lyashuk, O.L. Zolotuy, R.Z. Lyubachivskyy, R.O. Гевко, Іван Богданович |
Приналежність: | Ternopil Ivan Pul'uj National Technical University, Ternopil / Ukraine, E-mail: Oleg-lashyk@rambler.ru |
Бібліографічний опис: | Gevko І.B. Investigation of the radius of bending for flexible screw sectional conveyer / Gevko І.B., Lyashuk O.L., Rogatinska L.R., Zolotuy R.Z., Lyubachivskyy R.O. // International symposium ISB-INMA TEH "Agricultural and mechanical engineering". Bucharest, 2013, pp. 175-182. |
Конференція/захід: | International symposium ISB-INMA TEH "Agricultural and mechanical engineering" |
Дата публікації: | 2013 |
Дата внесення: | 9-бер-2016 |
Видавництво: | ISB-INMA TEH |
Теми: | screw operating member SOM transportation minimum radius of bending angle of twist гвинтовий робочий орган транспортування мінімальний радіус згину кут закручування |
Кількість сторінок: | 175-182 |
Початкова сторінка: | 175 |
Кінцева сторінка: | 182 |
Короткий огляд (реферат): | Method of calculation radius of bending for the
flexible screw sectional conveyer was presented. Analytical
dependencies for finding maximal turning radius in order to
provide the reliable operation of the mechanism were
defined. The stand construction for investigation of the
angle of twist of the sectional operating members was
developed. The effect of different construction parameters
(section length, diameter) on their operating life characteristics
as well as the comparative testing of different types screw
operating members (SOM) samples, were found. The
method of the construction production effectiveness testing
of the flexible screw conveyer sections operating
members, which provides the minimal radius of bending of
the transporting routes, was presented. Наведено методику розрахунку радіуса згину гнучкого гвинтового конвеєра з секційними елемента. Виведено аналітичні залежності для визначення оптимального значення радіуса повороту з метою забезпечення надійної роботи механізму. Розроблена конструкція стенд для дослідження кута закручування секційних робочих органів і встановлено вплив різних конструктивних параметрів (довжина секції, діаметр) на їх ресурсні характеристики, а також порівняльні випробування різних типів дослідних взірців ГРО. Наведена методику відпрацювання робочих органів гнучких гвинтових секцій конвеєрів на технологічність конструкції, яка забезпечує мінімальний радіус згину траси транспортування. |
URI (Уніфікований ідентифікатор ресурсу): | http://elartu.tntu.edu.ua/handle/123456789/13357 |
ISSN: | 2344-4118 |
Перелік літератури: | [1]. Owen, P.J. and Cleary, P.W . (2009) - “Prediction of screw conveyor performance using the Discrete Element Method (DEM)”, Powder Technology, 193(3), P. 274-288.; [2]. J. W Fernandez, P. W . Cleary, W. Bride. (2009) - “Effect of screw design on hopper draw down by a horizontal screw feeder”, Seventh international conference on CFD in the minerals and process industries CSIRO, Melbourne, Australia 9-11 December.; [3]. Hu G., Chen J., Jian B., Wan H. Liu L. (2010) -Modeling and simulation of transportation system of screw conveyors by the discrete element method. International Conference on Mechanic Automation and Control Engineering, MACE2010, Article number 5536244, P. 927-930; [4]. Zareiforoush, H., Komarizadeh, M.H., Alizadeh, M.R. (2010) - Effect of crop-screw parameters on rough rice grain damage in handling with a horizontal screw conveyor. Journal of Food, Agriculture and Environment Volume 8, Issue 3-4 PART 1, July, P. 494-499. [5]. Григорьев А.М. (1972) - Винтовые конвееры. Машиностроение., - 286 с., Москва; [6]. Гевко Б.М. та ін. (1993) - Механізми з гвинтовими пристроями. Вища школа, -205 с., Львів; [7]. Гевко Б.М., Рогатынский Р.М. (1989) - Винтовые подающие механизмы сельскохозяйственных машин. Выща школа, – 175 с., Львов; [8]. Гевко І.Б. (2008) - Гвинтові транспортно- технологічні механізми. Розрахунок і конструювання. ТДТУ ім. Івана Пулюя, - 307с., Тернопіль; [9]. Гевко Б.М., Ляшук О.Л., Гевко І.Б., Драган А.П., Новосад І.Я. (2008) - Технологічні основи формоутворення спеціальних профільних гвинтових деталей - СМП “Тайп”, 367с., Тернопіль; [10]. Лещук Р.Я. (2003) - Обгрунтування конструктивно- силових параметрів секційних робочих органів гвинтових механізмів. Автореф. Канд. Техн. Наук. –Львів, – 19 с.; [11]. Гевко І.Б., Комар Р.В., Лещук Р.Я., Новосад І.Я. (2005) - Патент No18401. Україна. Гвинтовий робочий орган соковитискача. Бюл. No7, - 4 с. |
References: | [1]. Owen, P.J . and Cleary, P.W . (2009) - “Prediction of screw conveyor performance using the Discrete Element Method (DEM)”, Powder Technology, 193(3), P. 274-288.; [2]. J . W Fernandez, P. W . Cleary, W . Bride. (2009) - “Effect of screw design on hopper draw down by a horizontal screw feeder”, Seventh international conference on CFD in the minerals and process industries CSIRO, Melbourne, Australia 9-11 December.; [3]. Hu G., Chen J., Jian B., Wan H. Liu L. (2010) - Modeling and simulation of transportation system of screw conveyors by the discrete element method. International Conference on Mechanic Automation and Control Engineering, MACE2010, Article number 5536244, P. 927-930; [4]. Zareiforoush, H., Komarizadeh, M.H ., Alizadeh, M.R . (2010) - Effect of crop-screw parameters on rough rice grain damage in handling with a horizontal screw conveyor. Journal of Food, Agriculture and Environment Volume 8, Issue 3-4 PART 1, July, P. 494-499. [5]. Hrigoriev A.M. (1972) - Screw conveyers. Mashynostrojenije, - 286p., Moscow; [6]. Gevko B.M. co -authors. (1993) - Mechanisms with screw devices. High school, – 205 p., Lviv; [7]. Gevko B.M. Rohatynsky R.M. (1989) - Screw feeding mechanisms of agricultural machines. High school, 175p., Lviv; [8]. Gevko I.B . (2008) - Screw transporting-technological mechanisms. Calculation and designing. TNTU, - 307 p., Ternopil; [9]. Gevko B.M., Lyashuk O.L ., Hevko I.B ., Drahan A.P., Novosad I.Y. (2008) - Technological bases of special profile screw parts shaping. SMP “Tajp”, 367p., Ternopil; [10]. Leschuk R.J . (2003) - Interpreting of design-power parameters of the sectional screw mechanisms operating members. Dissertation for the scientific degree of Candidate of sciences (engineering), 19p., Lviv; [11]. Gevko I.B ., Komar R.B ., Leschuk R.Y., Novosad I.Y. (2005) - Patent No18401. Ukraine. Screw operating member of juice-extruder. Digest No7, 4p. |
Тип вмісту: | Article |
Розташовується у зібраннях: | Наукові публікації працівників кафедри менеджменту та адміністрування |
Файли цього матеріалу:
Файл | Опис | Розмір | Формат | |
---|---|---|---|---|
article_2013.pdf | 2,22 MB | Adobe PDF | Переглянути/відкрити | |
article_2013.djvu | 695,96 kB | DjVu | Переглянути/відкрити | |

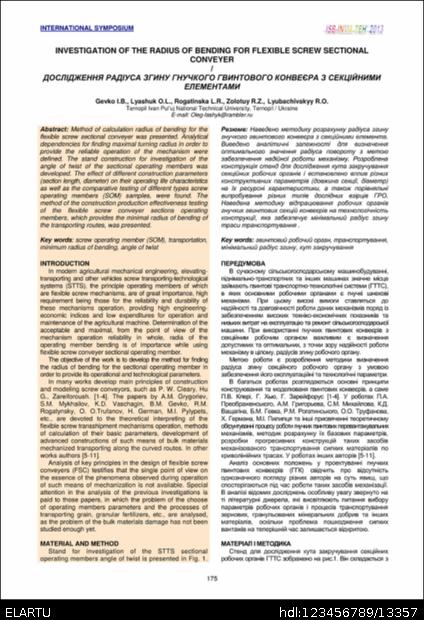

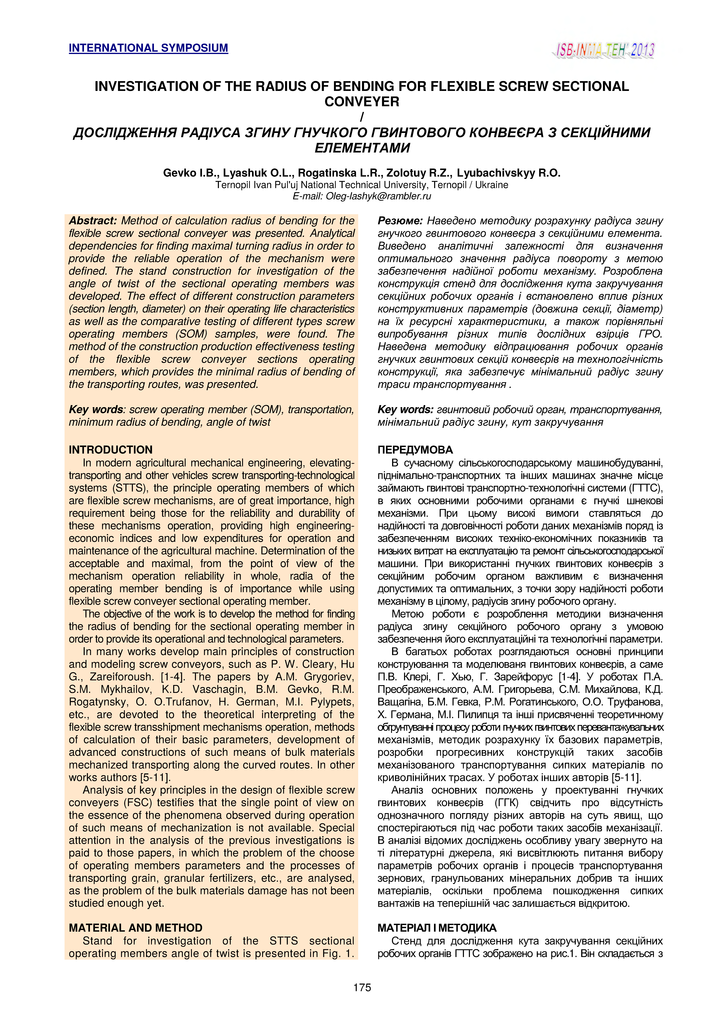

article_2013__COVER.png | 755,79 kB | image/png | Переглянути/відкрити |
