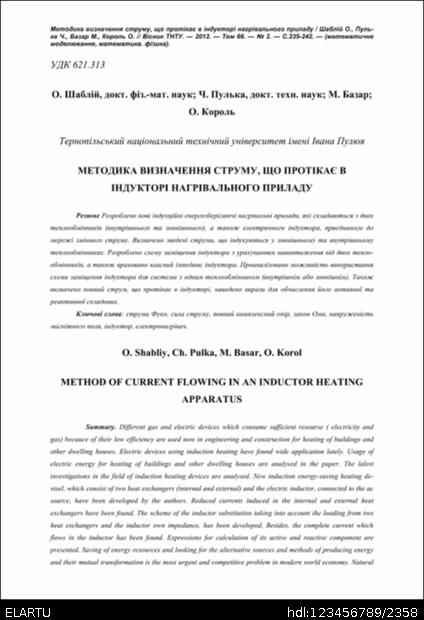

Назва: Методика визначення струму, що протікає в індукторі нагрівального приладу
Інші назви: Method of current flowing in an inductor heating apparatus
Автори: Шаблій, Олег Миколайович
Пулька, Чеслав Вікторович
Базар, Мар’ян Степанович
Король, Олег Іванович
Shabliy, O.
Pulka, Ch.
Basar, M.
Korol, O.
Бібліографічний опис: Методика визначення струму, що протікає в індукторі нагрівального приладу / Шаблій О., Пуль-ка Ч., Базар М., Король О. // Вісник ТНТУ. — 2012. — Том 66. — № 2. — С.235-242. — (математичне моделювання, математика. фізика).
Дата публікації: 24-кві-2012
Дата внесення: 26-чер-2013
Видавництво: Тернопільський національний технічний університет ім. Івана Пулюя
Місце видання, проведення: Тернопіль, Україна
УДК: 621.313
Теми: струми Фуко
сила струму
повний комплексний опір
закон Ома
напруженість магнітного поля
індуктор
електронагрівач
currents force
complete comprehensive resistance
law of Ohm
tension of magnetic-field
inductor
electro-heater
Короткий огляд (реферат): Розроблено нові індукційні енергозберігаючі нагрівальні прилади, які складаються з двох теплообмінників (внутрішнього та зовнішнього), а також електричного індуктора, приєднаного до мережі змінного струму. Визначено зведені струми, що індукуються у зовнішньому та внутрішньому теплообмінниках. Розроблено схему заміщення індуктора з урахуванням навантаження від двох теплообмінників, а також враховано власний імпеданс індуктора. Проаналізовано можливість використання схеми заміщення індуктора для системи з одним теплообмінником (внутрішнім або зовнішнім). Також визначено повний струм, що протікає в індукторі, наведено вирази для обчислення його активної та реактивної складових.
Different gas and electric devices which consume sufficient resourse ( electricity and gas) becauce of their low efficiency are used now in engineering and construction for heating of buildings and other dwelling houses. Electric devices using induction heating have found wide application lately. Usage of electric energy for heating of buildings and other dwelling houses are analysed in the paper. The lalest investigations in the field of induction heating devices are analysed. New induction energy-saving heating devisel, which consist of two heat exchangers (internal and external) and the electric inductor, connected to the ac source, have been developed by the authors. Reduced currents induced in the internal and external heat exchangers have been found. The scheme of the inductor substitution taking into account the loading from two heat exchangers and the inductor own impedance, has been developed. Besides, the complete current which flows in the inductor has been found. Expressions for calculation of its active and reactive component are presented. Saving of energy resources and looking for the alternative sources and methods of producing energy and their mutual transformation is the most urgent and competitive problem in modern world economy. Natural resources of fossil, fuels gas and oil, are coming to an end, but the pace of their consumption is increasing. Electric heating systems are the promising direction of the development of the heat power engineering of Ukraine. This is the path towards the energy security and independence from the scarce fossil fuels resources. The problem of ecological safety is urgent in the world. Thus, electrical heating systems are the leaders, even when compared with those running on the biofuels, as the electrical devices do not produce any gases and the electrical energy can be produced by transformation of the wind and solar energy and by other eco-friendly methods. Besides, Ukraine produces enough energy. Modern electric heaters consume much electricity and as compared with the gas heating systems they are more expensive with low durability, TEN-type in particular, in which pipe-type electric heaters can not operate because of heating deposit. Taking into account everything mentioned, as well as the situation we happened to be, it is necessary to develop new electric devices, which would be more efficient and durable than conventional ones. It should be noted that while developing the device, the authors took advantage of fundamental laws of physics. The solutions were built on the basis of the Maxwell equations, the law of complete current, the Joule-Lenz law, the Kirchhoff’s rules and the Ohm’s law. Only the method for finding the current force in the inductor, which is the main power characteristic of the designed device, has been analyzed in the paper, because due to the current force the efficiency of the heating device can be found. Besides, the temperature of the heat carrier will depend on the current force.
URI (Уніфікований ідентифікатор ресурсу): http://elartu.tntu.edu.ua/handle/123456789/2358
ISSN: 1727-7108
Власник авторського права: © „Вісник Тернопільського національного технічного університету“
Статус публікації : Опубліковано раніше
Тип вмісту: Article
Розташовується у зібраннях:Вісник ТНТУ, 2012, № 2 (66)
